Description
Features

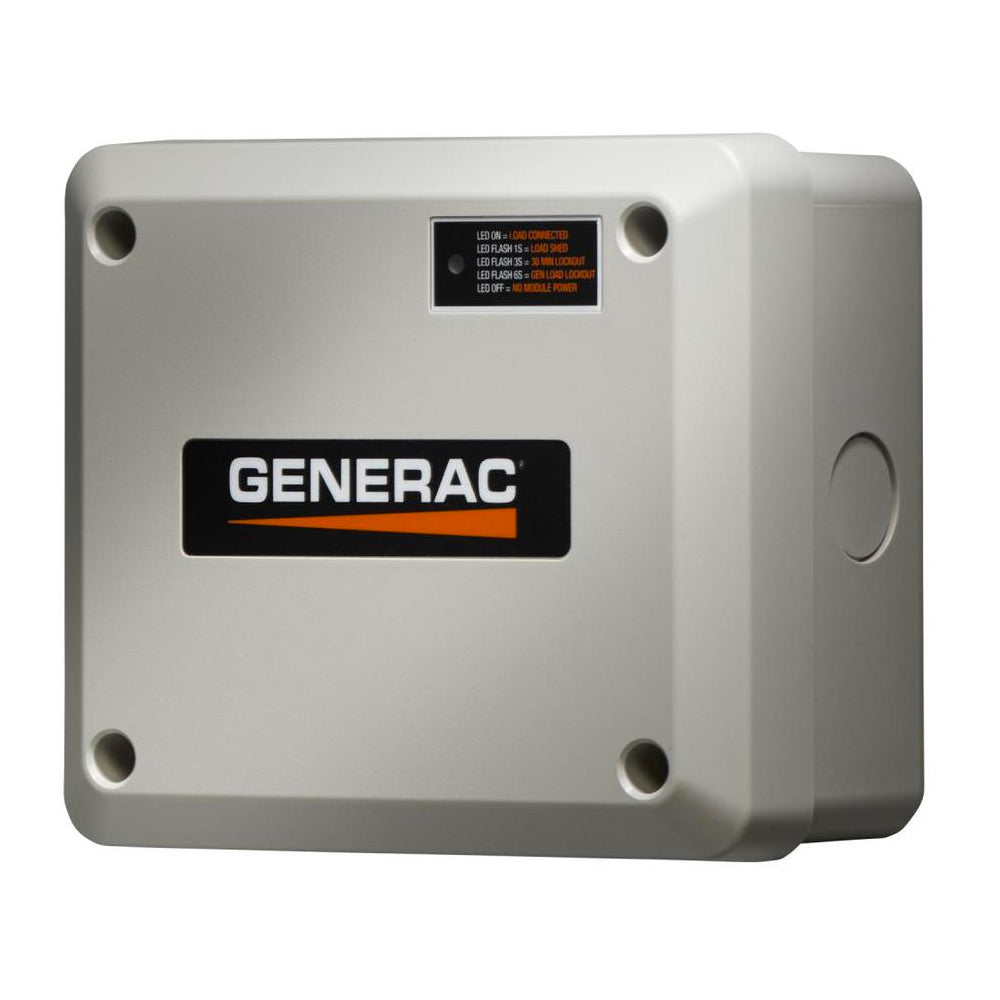

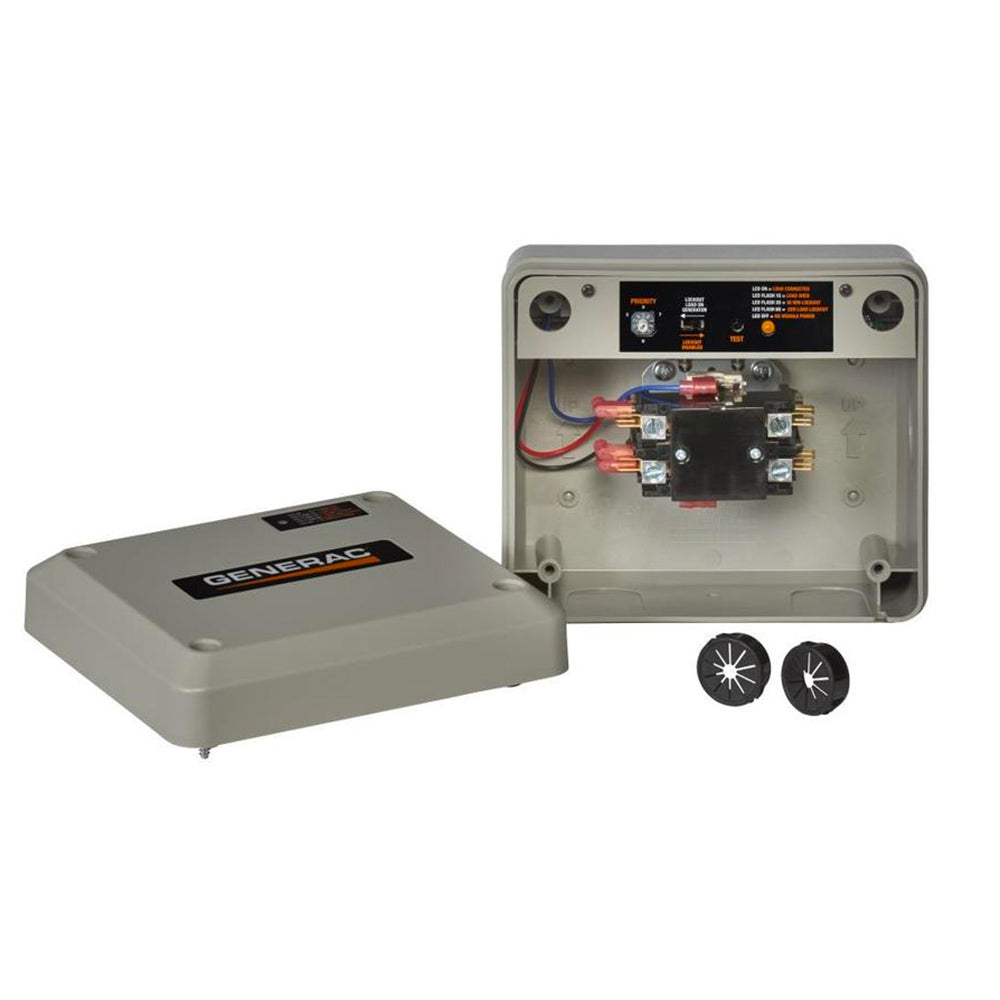

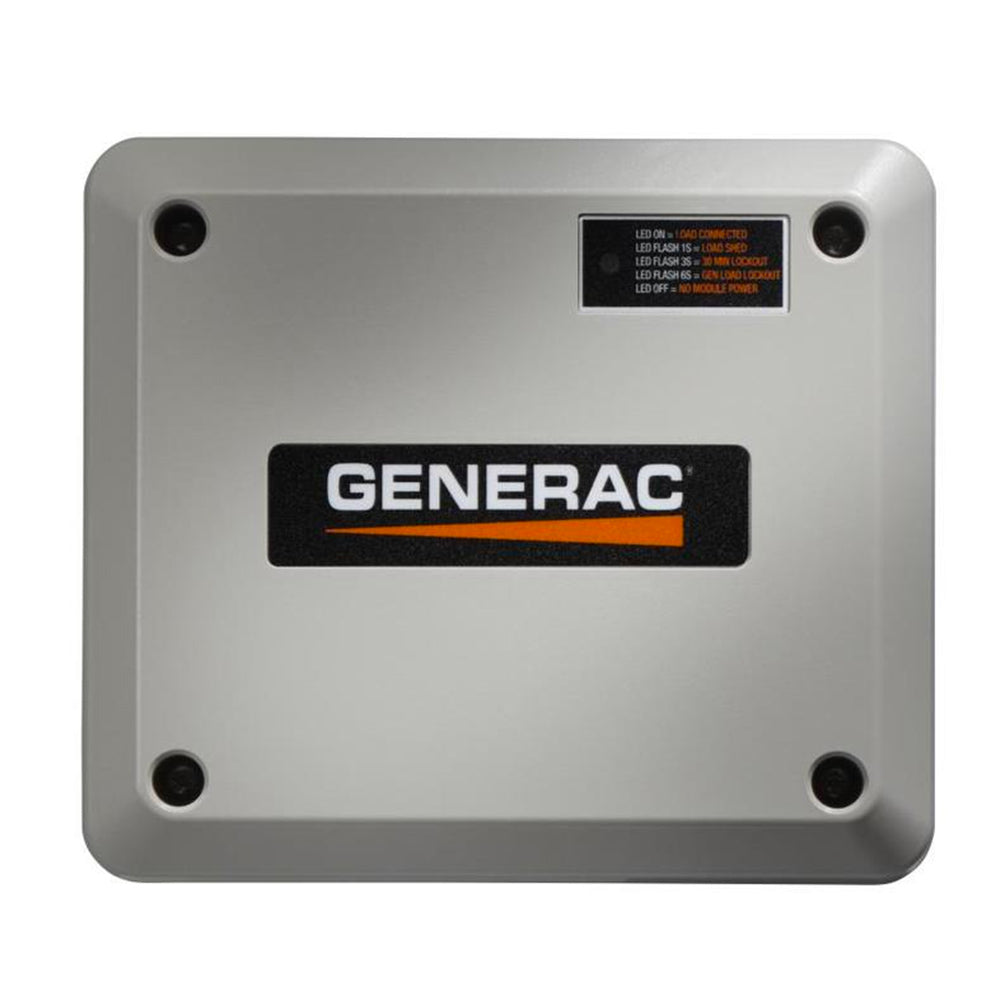

- These modules are essential to a Generac power management system.
- They work with your transfer switch, monitoring each selected circuit and automatically supplying power where it’s needed so you can get the most from your generator.
- A Generac power management system can use up to eight individual Smart Management Modules, depending on your needs. Just as important, you can set the load priority for each – putting you in control of which circuits matter most.
What’s in The Box
- Standby Generator Smart Management Module
- Owner’s Manual
Warranty
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | 7000 |
| Brand | Generac |
| Voltage | 230V AC |
| Contact Voltage | 220V/240V AC |
| Contactor Coil Voltage | 240V AC |
| Coil Inrush | 30V |
| Coil Sealed | 6.5V |
| Poles | 2 |
| Resistive Amperage | 50A |
| F/L Inductive Amperage | 40A |
| Locked Rotor Amperage | 180A |
| NEMA Enclosure | 3R |
| Enclosure Rating | UL 50 |
| Frequency Selectability | 50 Hz / 60 Hz |
| Depth | 3.7 in. |
| Width | 7.06 in. |
| Height | 6.17 in. |
| Product Weight | 2.06 lbs. |
Phil –
Ac not working
Received the unit on time and quickly. Installed in less than 20 minutes. All ok an running !
