Description
Features

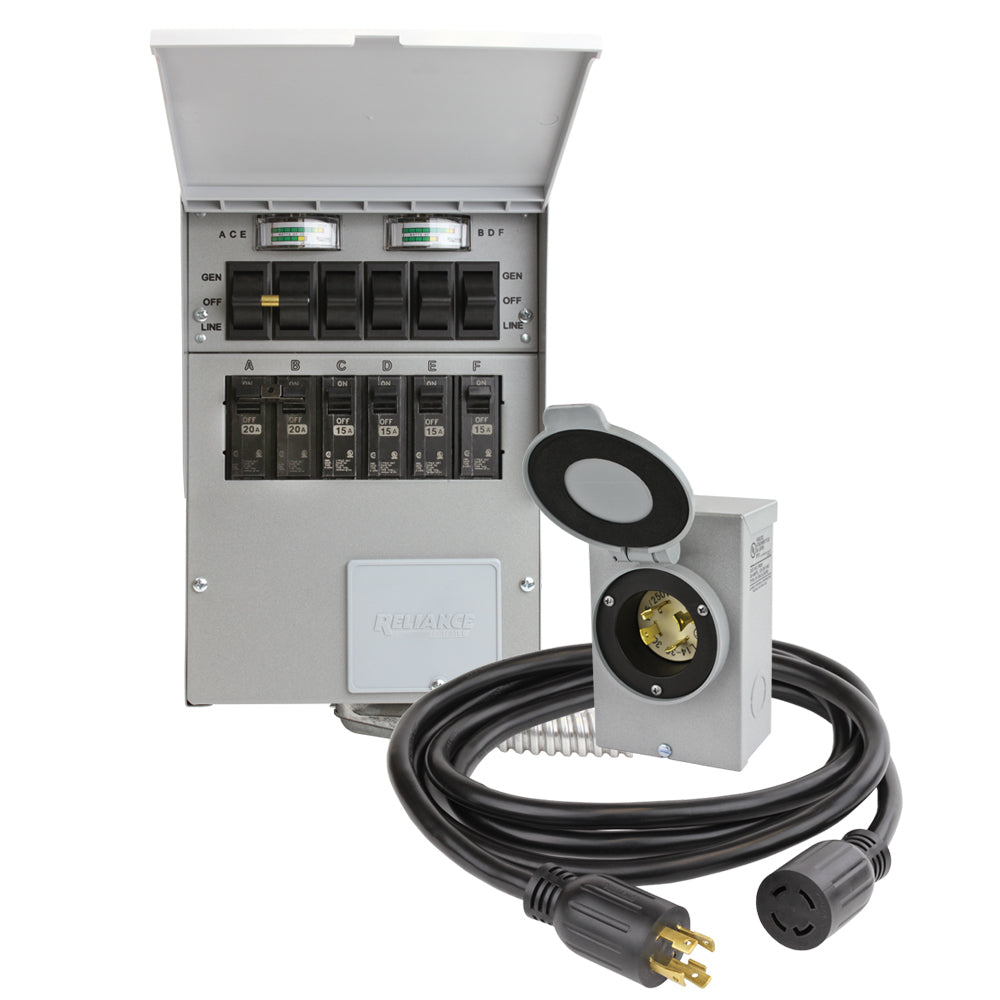

- 6 circuit transfer switch kit
- Contains all components necessary to allow up to 6 single pole or one 2 pole & 4 single pole circuits to be safely powered by a portable generator during a power outage
- Installs adjacent to existing load center
- Completely pre-wired
- Accommodates generators to 7500W continuous output
What’s in The Box
- 306C six-circuit prewired transfer switch,
- PC3010 power cord (10 feet, 10 AWG, L14-30 ends)
- PB30 outdoor painted steel power inlet box (L14-30 inlet)
- Owner’s Manual
Warranty
- 5 Year Limited Manufacturer Warranty
- 30-Day Satisfaction Guaranteed
Specifications
| SKU | 306CRK |
| Model Description | Pro/Tran 2 |
| MAX. Generator Running Watts | 7500 |
| Phase | Single |
| MAX. Single-Pole Circuits | 6 |
| MAX. Double-Pole Circuits | 3 |
| MAX. Rating Per Circuit | 2/30A, 4/20A |
| MAX. Combined Load at 125 VAC | 60 |
| MAX. Combined Load at 250 VAC | 30 |
| Power Inlet, NEMA | L14-30 |
| Cord Size [gauge] | 10 |
| Recommended Cord Size [gauge] | 10 |
| Conduit Size [inches] | 3/4 |
| Conduit Length [inches] | 16 |
| Wattmeters | Yes |
| Cabinet Type, NEMA | Indoor, NEMA |
| Cord Length [feet] | 10 |
| Dimensions H x W x D [inches] | 11.25 x 7.75 x 4.5 |
| Shipping Weight [lbs.] | 25 |
Jack Quin –
Mistaken
Thought i ordered 30 amp double pole breakers. NOT!! Have to buy my own and can’t find out were to buy them.
Customer –
Customer –
Customer –
Customer –
Mariah –
Perfect for emergencies
I have installed these as a master electrician. About to put one in tomorrow. They are easy and any breakers you may need can be purchased at any hardware store.
